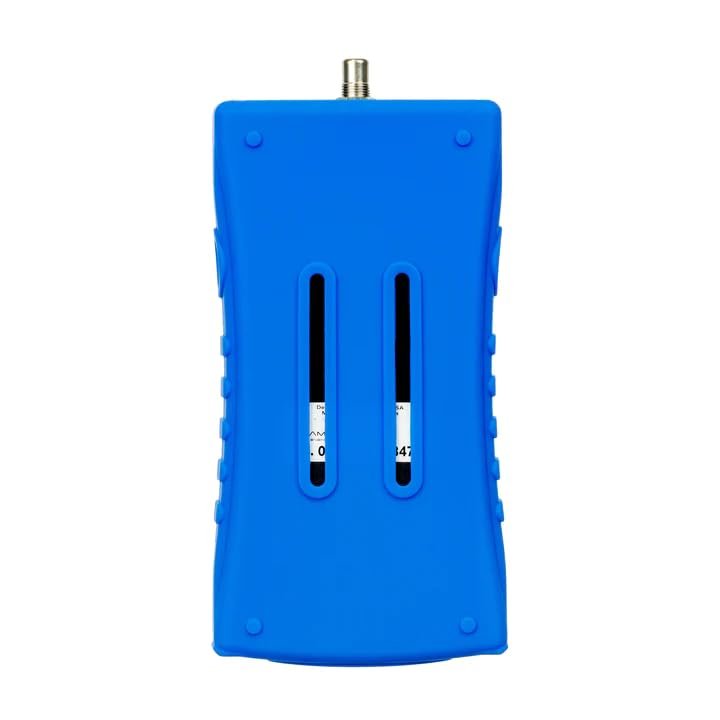

SMD Distortion Detector DD-1

SMD Distortion Detector DD-1Distortion detector/analyzer (dd1)Distortion detector's circuitry is 100% analogDistortion detection trigger level > 1.0% harmonic distortionOperating range of input signal is 1.2 vrms a" 125 vrms, (15, 000 watts at 1 ohm)Signal present LED trigger voltage 750 mvrms
