Aviom AN-16/i Input Module (Demo)

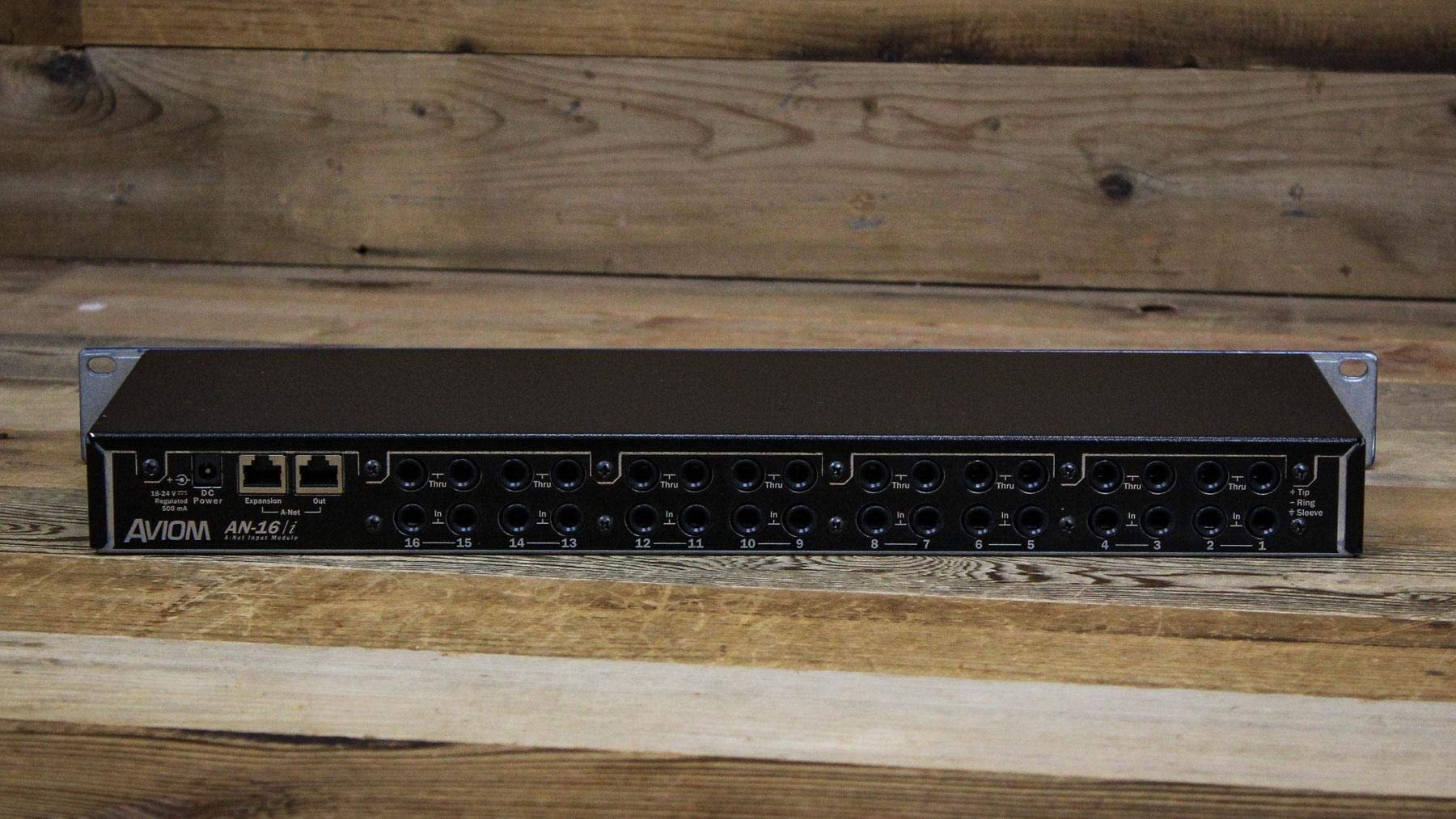

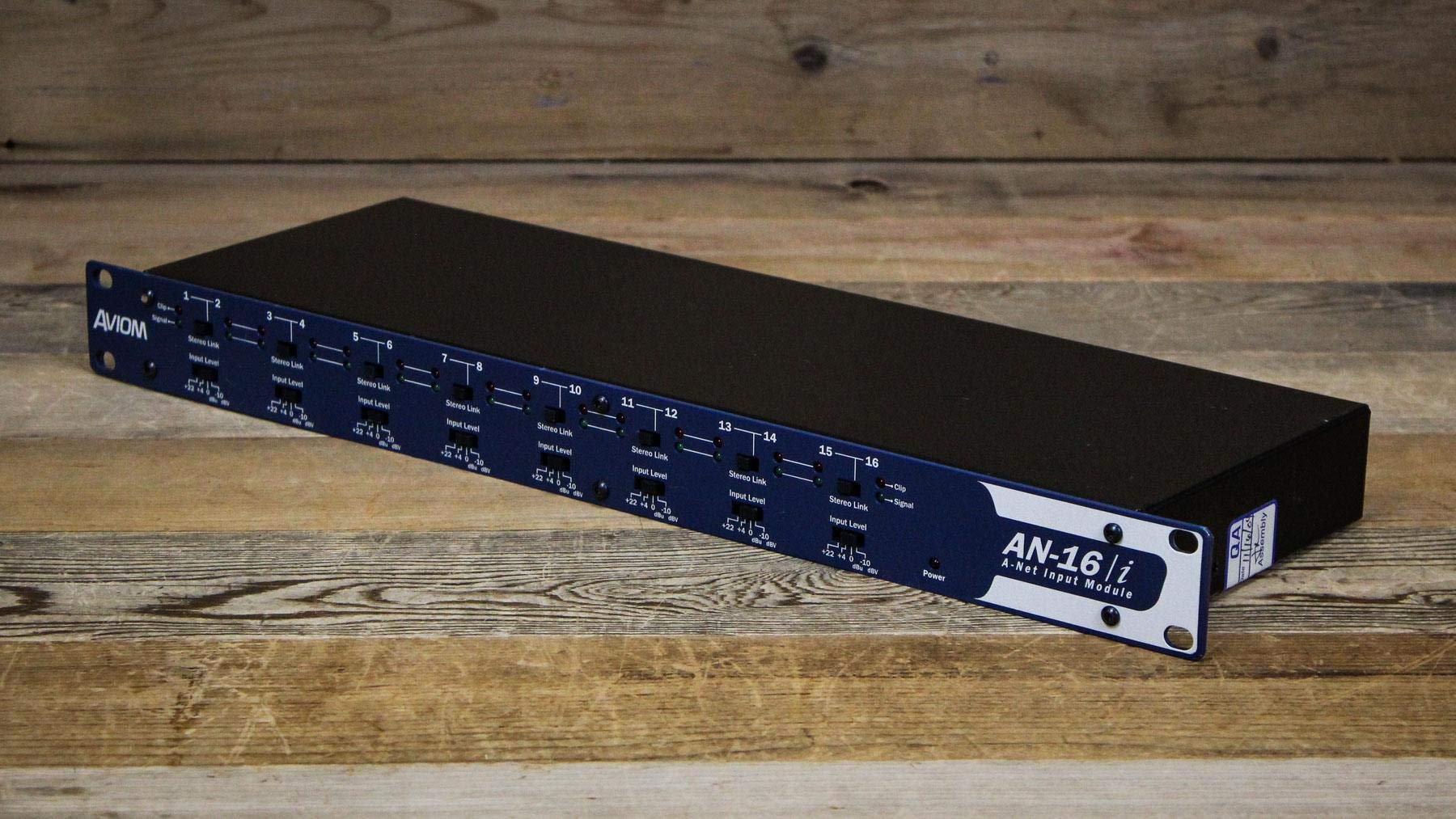

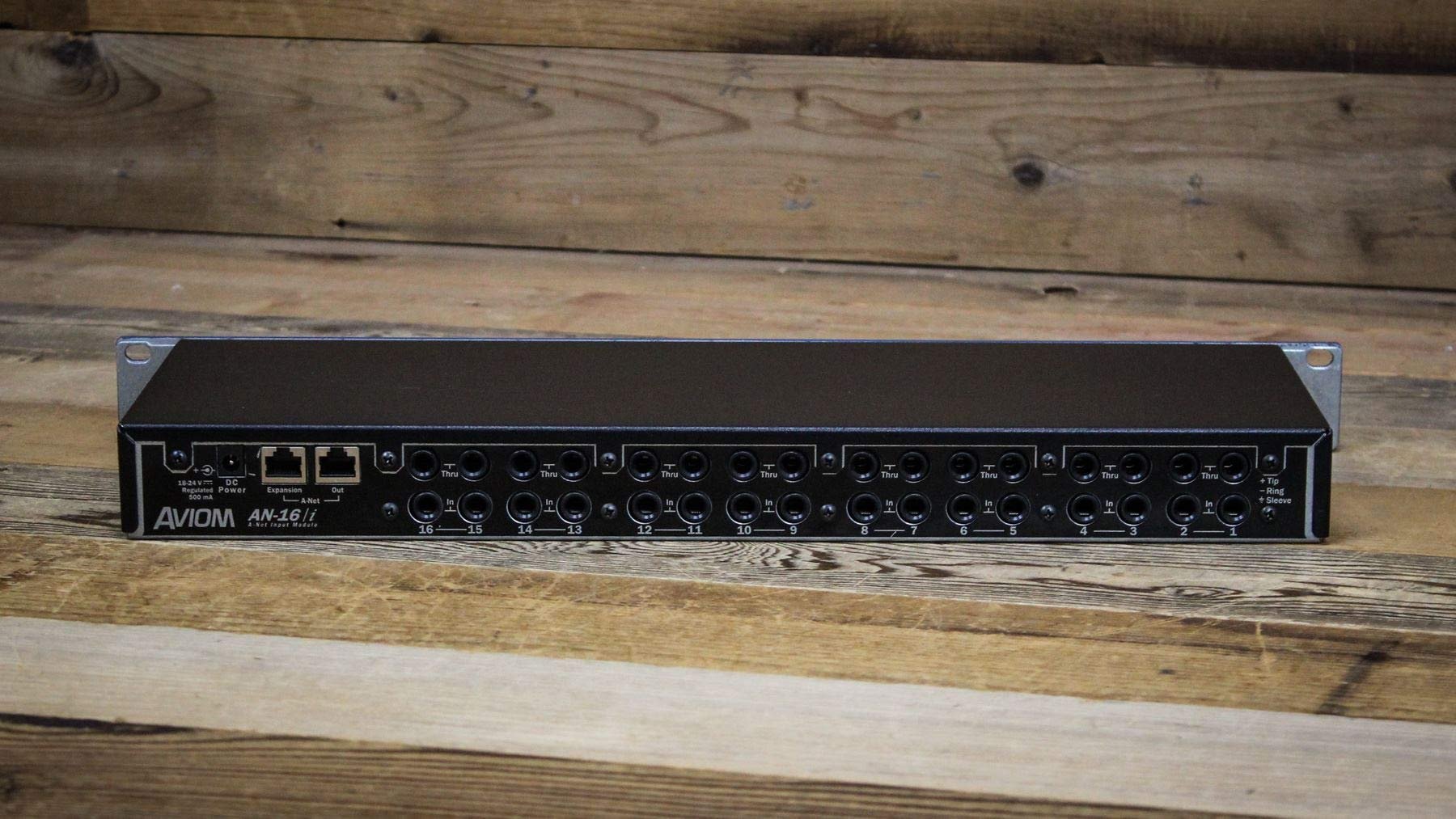

The AN-16/i Input Module is a single rack space unit that serves as the A/D input for the digital snake. The AN-16/i can also be used as the analog input module for a personal monitoring system. It converts sixteen line level analog audio channels into uncompressed, full bandwidth digital data transmitted via Aviom's proprietary A-Net protocol. All inputs are balanced 1/4" TRS jacks. There is a Thru jack available for each input, which allows the AN-16/i Input Module to be inserted into an existing audio signal path.On the front panel, the AN-16/i has a four-position gain switch (+22, +4, 0, and -10dB), stereo channel link switches, and signal present and clip LEDs.The rear panel of the AN-16/i has two rows of sixteen 1/4" TRS jacks for analog audio Input and Thru. For system network connections, there is an A-Net Out jack and an A-Net Expansion jack. The A-Net Expansion jack allows multiple AN-16 units to be combined. The modular system is easily reconfigured at a moments notice.Features: 16 x balanced 1/4" TRS audio inputs (Euroblock connectors coming soon) 16 x balanced Thru connectors A-Net Out and A-Net Expansion network connections (Cat-5) Stereo Link switches for each channel pair Four-position gain switches (+22, +4, 0, -10dB) 1U rack enclosure Can be used as an input module for the A-16 Personal Monitor Mixing System Includes power supply and Manual #html-body [data-pb-style="632018FCD0ADE"]{justify-content: flex-start; display: flex; flex-direction: column; background-position: left top; background-size: cover; background-repeat: no-repeat; background-attachment: scroll; border-style: none; border-width: 1px; border-radius: 0px; margin: 0px 0px 10px; padding: 10px;}#html-body [data-pb-style="632018FCD0AEA"]{border-style: none; border-width: 1px; border-radius: 0px; margin: 0px; padding: 0px;}#html-body [data-pb-style="632018FCD0AF1"]{color: #41362f;}#html-body [data-pb-style="632018FCD0AF7"]{color: #41362f;}#html-body [data-pb-style="632018FCD0AF AVIOM MODULE INPUT 16 CHANNEL
